PJSIM and PJSIM_N

Overview and Download

PJSIM [1] is an analog circuit simulator for superconducting circuits composed of both conventional Josephson junctions (0-JJs) and pi-shifted Josephson junctions (pi-JJs). PJSIM is developed by modifying JSIM circuit simulator originally developed by UC Berkeley's group [2]. PJSIM_N is the modified PJSIM that can simulate circuit characteristics taking thermal noises at the arbitrary temperature into account by employing the thermal noise analysis method for superconducting circuits [3]. Usage of PJSIM (and PJSIM_N)  and how to describe the netlist of the circuit under analysis are the same as JSIM (and JSIM_N) [4] except description of the pi-shifted Josephson junction in the netlist.

[1] Y. Yamanashi, S. Nakaishi, A. Sugiyama, N. Takeuchi, and N.Yoshikawa, “Design methodology of single-flux-quantum flip-flopscomposed of both 0- and pi-shifted Josephson junctions,” Supercond.Sci. Technol., vol. 31, no. 10, 105003, Aug. 2018. (Open Access) DOI
[2] E.S. Fang and T. Van Duzer, "A Josephson Integrated Circuit Simulator (JSIM) forSuperconductive Electronics Application," Extended Abstracts of 1989 Intl. Supercond. Electronics Conf. (ISEC'89), pp. 407-410, 1989.
[3] M. Jeffery, P. Y. Xie, S. R. Whiteley, and T. Van Duzer, "Monte Carlo and Thermal Noise Analysis of Ultra-High-Speed High Temperature Superconductor Digital Circuits," Appl. Supercond. Conf. 1998.
[4] JSIM user manual: http://www0.sun.ac.za/ix/?q=tools_jsim

PJSIM download (Released, Nov. 8, 2018)

PJSIM_N download (Released, Nov. 9, 2018)


Building PJSIM (and PJSIM_N)

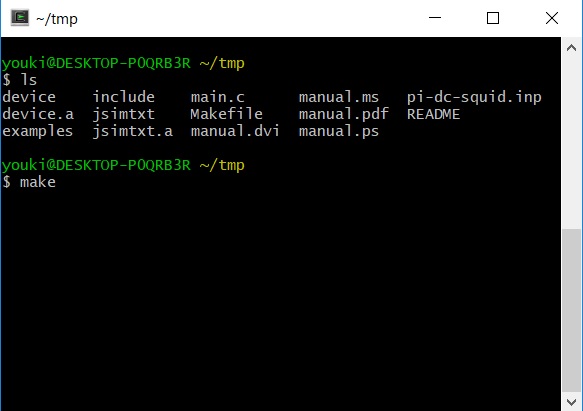

If you can execute 'make' and 'gcc' commands, simply type

> make

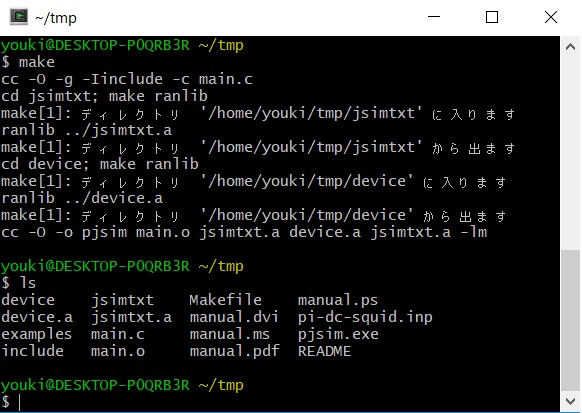

on your console. Confirm that the execution file "pjsim.exe" is built.

This should work on most Linux systems and their compatible environments, such as Cygwin in Windows.







Example

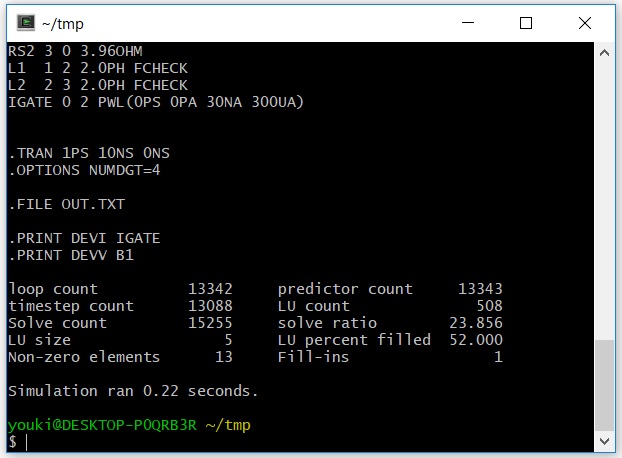

Try the following transient analysis of pi-dc-SQUID in the directory you compiled PJSIM.

> pjsim pi-dc-squid.inp

If the output file (OUT.TXT) is obtained with no error, PJSIM is correctly build.

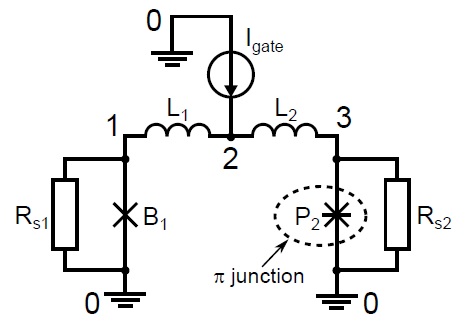

Circuit Example (pi-dc-SQUID)




Netlist of pi-dc-SQUID

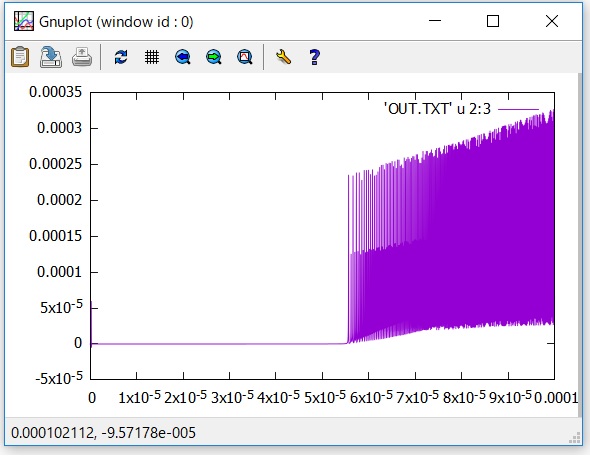

Output Data




I-V characteristic of pi-dc-SQUID calculated by PJSIM (2nd row vs. 3rd row of OUT.TXT).
Horizontal: Igate (A). Vertical: Voltage across B1 (V).
